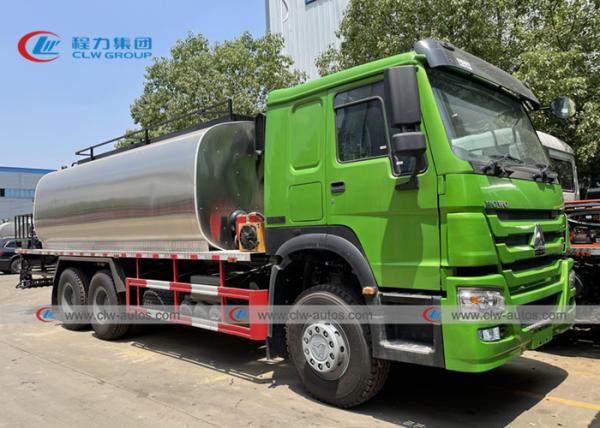

Sinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving Truck

Brand Name : CLW

Model Number : CLW20210726

Certification : ISO9001, CCC, BV, SGS

Place of Origin : SUIZHOU, HUBEI, CHINA

MOQ : 1 unit

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 30-35 days after receiving the deposit

Packaging Details : Naked or waxed before shipment

Tanker material : Stainless steel, aluminum alloy

Product name : Asphalt Truck Bitumen Sprayer Truck

Drive Type : 6X4 10 wheels, 10 wheeler

Drive model : Left hand drive, or Right hand drive

Loading capacity : 5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 15cbm etc

Truck Brand : Sinotruk/Sinotruck HOWO, HOHAN, FAW, FOTON, jac

Tuck type : Road Construction Paving Bitumen Truck

Other equipment : charging/discharging valves. Manhole

Equipment : Pump, Hydraulic Motor, oil pump

Sprinkle speed : 0.2 to 3 liters / square meter

Sprinkle width : 6 meter

Contact Now

Sinotruk HOWO 6x4 10 wheels Sinotruk 8 Cbm Road Construction Paving Bitumen Truck 10CBM Asphalt Distributor Truck


Description of the asphalt distributor truck

Chassis brand: Dongfeng , SINOTRUK HOWO, JAC, Beiben etc
Driving type: left hand drive, right hand drive
Axle: 4x2, 6x4 , 6x2, 8x4
Tank volume: 3000 liters, 5000 liters, 6000 liters, 8000 liters, 10000 liters etc


Application of the asphalt distributor truck

It's widely used in the road construction. Can spay asphalt to the road very fast and uniform

SINOTRUK HOWO 6x4 16m3 asphalt spraying truck
Chassis ZZ1257
Color Red ,White, Yellow or optional
Drive type 6x4,left hand drive
Dimensions
Wheel base 4600+1350mm
Overall Dimension 10200x2500x3450mm
Tank volume 16m3
Weights
Payload weight 16000kg
Curb weight 16000kg
Front /Rear tread 2022/1830/1830mm
Front/rear overhang 1500/2750mm
Approach/Departure angle 16/13(°)
Engine
Engine model WD615.87 ,Euro 2
Engine horsepower 290HP
Engine manufacturer SINOTRUK Group
Displacement 9726L
Drive Line
Cluth description Dry single plate, hydraulic control booster, mechanical operation
Transmission HW19710/10 forwarder,2 reverse gear,
Manual operation
Braking system Service brake air brake
Axles
Front Axle-Model HF7, 7 ton
Rear Axle(drive axle)-Model Double ST16, 16 ton x 2
Tire specification 12.00R22.5, 10 tires+1 spare tire
Special function of asphalt distribution truck
Asphalt tank Material: 4mm steel plate.120mm insulation layer, stainless steel outside .it can prevent the heating losing
Tanker volume 16m3,one φ440mm manhole
Thermal asphalt 160-180 centigrade
Asphalt pump Model QGB950
Flow 57m3/h
Rated speed 583rpm/min
Resolve pressure 0.8MPA
Hydraulic pump CBQ563-L
Control method Semi intelligence control
Spray width 6m

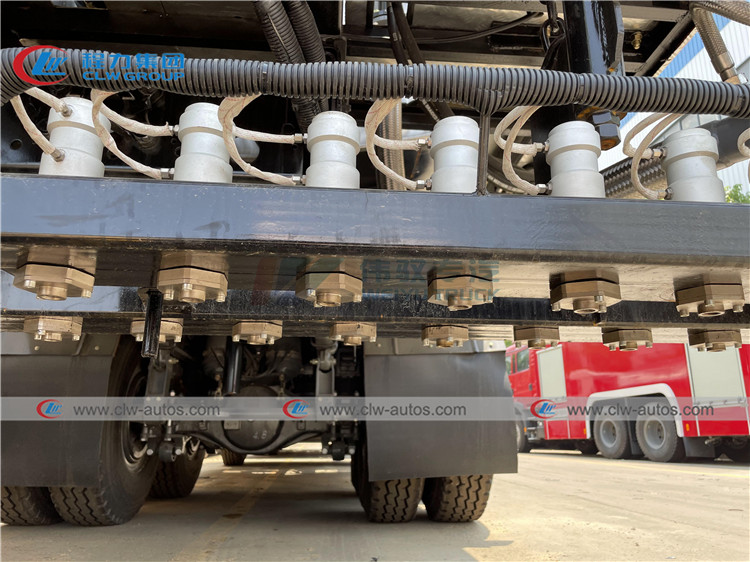

Asphalt intelligent nozzle 48units
Heating method Heat conducting oil automatic heating
Burner G20, imported from Italy
Heat conducting oil pump 40-25-160

Sinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving TruckSinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving TruckSinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving TruckSinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving TruckSinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving TruckSinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving TruckSinotruk Howo 6x4 8M3 10M3 Road Construction Asphalt Paving Truck

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
