ISUZU 12000L 12CBM Aluminum Alloy Aircraft Refueling Trucks

Brand Name : CLW

Model Number : CLW5096JYC

Certification : CCC,ISO,BV,SGS

Place of Origin : Suizhou, China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Unit/Month

Delivery Time : 35 Days

Packaging Details : Naked packing,Ro-ro,Bulk Ship

Chassis Brand : Howo, Dongfeng, Isuzu, Foton, JAC, etc.

Gearbox : 8 Forward & 2 Reverse Gear

Tanker Volume : 15m3, 16m3, 17m3, 18m3, 19m3, 20m3, etc.

Tank Material : Carbon Steel, Stainless Steel or Aluminum Alloy

Tank Shape : Square Round, Round

Transport Oil Type : Diesel, Petrol, Gasoline, Oil, etc.

Oil Pump : Chinese Famous Brand

Oil Dispenser : Chinese Famous Brand

Hose Reel with Filling Gun : 15 Meter (Length Can Be Longer as Per Request)

Oil Vapor Recovery System : Optional

Color : Customized

Warranty : 1 Year

Contact Now

ISUZU 12000L 12CBM Aluminum Alloy Helicopter Fuel Dispenser Refueling Truck

Product Description
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Our helicopter refueling truck have most competitive price.

Product Specification

Truck Specification
Cab		ISUZU cab with one sleeper with A/C
Driving Type		4*2 Left hand driving
Max Speed (km/h)		100
Overall dimension(mm)		884024503000 (mm)
GVW (kg)		19000
Mass in working order (kg)		8900
Wheelbase(mm)		5550
Tire		10.00R20
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		8-speed
Bridge	Front axle	6300kg
	Rear axle	13000kg
Engine	Model	4HK1-TC50 / EURO V
	Fuel Type	Diesel fuel
	Type	in line-4,ind-cooler turbocharged
	Max output power/rotate speed (hp /rpm )	205hp
Braking system	Service Brake	Compressed air brake
Eletric system		24v
Upper-Body specification
Rated Capacity (L)		12000
Tank	Material	Stainless steel

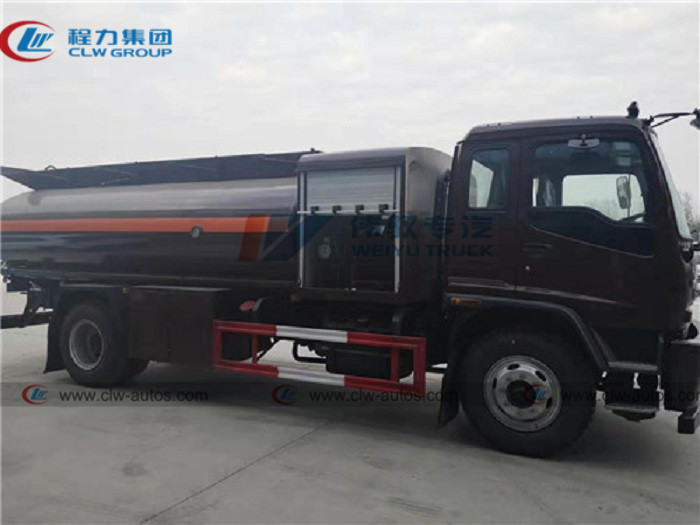

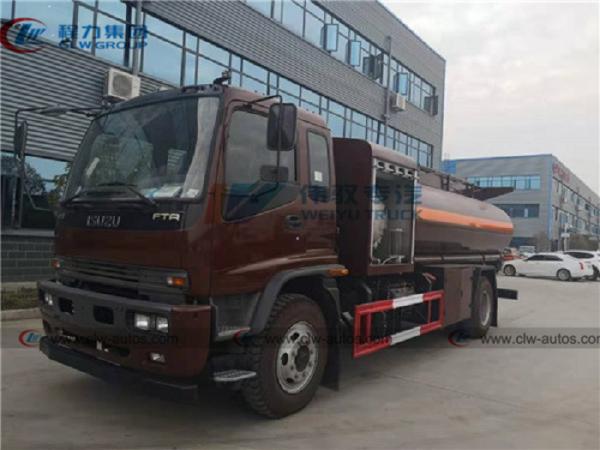

Reference Photos

ISUZU 12000L 12CBM Aluminum Alloy Aircraft Refueling Trucks

Aluminum Alloy Tank Production Process

Other Kinds of Fuel Dispenser Trucks

ISUZU 12000L 12CBM Aluminum Alloy Aircraft Refueling Trucks

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Helicopter refueling truck I can order from your company?

A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of Helicopter Refueling Truck products?

A: China GB local standard.

Q3: Can we adopts International brand fuel pump for helicopter refueling truck?

A: Sure, we already cooperated with many international brand supplier.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
